The Basics of Barcode Reading with Machine Vision Systems

·May 3, 2025

·19 min read

A barcode reading machine vision system uses advanced cameras and algorithms to identify and decode barcodes automatically. These systems play a vital role in industries where speed and precision are critical. You can rely on them to handle high-volume tasks like tracking products or verifying quality.

Machine vision excels in environments requiring fast and accurate barcode reading. For instance:

It processes thousands of barcodes daily in manufacturing.
It ensures quality by inspecting printed circuit boards.
It improves packaging efficiency in food and beverage production.

High-speed barcode reading systems demonstrate their value by improving operational efficiency across various industries.

Modern vision systems not only enhance productivity but also reduce errors, making them indispensable in today’s fast-paced industrial landscape.

Key Takeaways

Machine vision systems help read barcodes faster and more accurately in factories and shipping.
Taking care of barcode scanners stops mistakes from broken or faded barcodes, keeping them working well.
Smart AI and better programs make reading barcodes easier and more correct, even for damaged ones.
Using barcode systems can save money and make tracking inventory better in many businesses.
Adjusting to things like light is important for reading barcodes well; special lights can help improve results.

Types of Barcodes for Machine Vision Systems

Barcodes come in various formats, each designed for specific applications. Machine vision systems excel at reading these barcodes, ensuring accuracy and efficiency across industries. Let’s explore the main types of barcodes you’ll encounter.

1D Barcodes (e.g., UPC, EAN)

1D barcodes, also known as linear barcodes, are the most common type. These include formats like UPC and EAN, which you often see on retail products. They consist of vertical lines and spaces that encode information such as product IDs or prices.

Machine vision systems use advanced barcode scanners to read 1D barcodes quickly, even in high-speed environments like retail checkouts. For example:

In retail, point-of-sale barcode scanners ensure fast transactions.
In logistics, they track shipments efficiently.

Tip: Regular maintenance of barcode scanning equipment can prevent errors caused by damaged or faded barcodes.

2D Barcodes (e.g., QR Codes, Data Matrix)

2D barcodes store more data than their 1D counterparts. Formats like QR Codes and Data Matrix are widely used in industries requiring detailed information. These barcodes can encode URLs, serial numbers, or even entire documents.

The adoption of 2D barcodes is growing rapidly. A market report shows that the global market size for 2D barcode scanning systems is projected to grow from $7.27 billion in 2024 to $10.55 billion by 2029, with a CAGR of 8%. This growth is driven by increasing use in healthcare, e-commerce, and logistics.

Note: 2D barcodes are ideal for applications where space is limited, as they can be printed in smaller sizes without losing readability.

Specialty Barcodes (e.g., stacked barcodes, postal codes)

Specialty barcodes, such as stacked barcodes and postal codes, serve niche purposes. Stacked barcodes combine multiple 1D barcodes into a compact format, while postal codes streamline mail sorting.

These barcodes are also used for security and brand authentication. For instance:

Covertly printed Data Matrix codes protect against counterfeiting.
Specialized barcode scanners verify the quality of both 1D and 2D codes, ensuring they remain readable under various conditions.

Unreadable barcodes can disrupt workflows and increase costs. Machine vision systems address this by optimizing barcode scanning in challenging environments, such as those with poor lighting or damaged labels.

How Machine Vision Systems Work for Barcode Reading

Understanding how a barcode reading machine vision system operates can help you appreciate its efficiency and precision. These systems rely on advanced components, computer vision, and AI algorithms to decode barcodes accurately, even in challenging conditions.

Key Components of a Barcode Reading Machine Vision System

A barcode reading machine vision system consists of several essential components that work together to ensure optimal performance. Each part plays a specific role in capturing and interpreting barcode data.

Field of View (FOV): Determines the area visible to the camera. A larger FOV allows the system to scan multiple barcodes simultaneously.
Working Distance: Refers to the space between the camera lens and the barcode. Proper calibration ensures clear image capture.
Resolution: Measures the system's ability to capture fine details. High resolution is crucial for reading small or dense barcodes.
Depth of Field: Defines the range within which objects remain in focus. This is vital for scanning barcodes at varying heights or angles.
Sensor Size: Impacts the quality of the captured image. Larger sensors provide better image clarity.
Primary Magnification (PMAG): Represents the ratio between the sensor size and the FOV, ensuring accurate scaling of the barcode image.

Tip: Regularly calibrating these components can improve the reliability of your barcode scanning system.

Machine vision cameras, a critical part of these systems, provide real-time digital images. They enhance accuracy by identifying issues like damaged or missing labels. Predictive maintenance features also help you forecast equipment failures, reducing downtime and improving operational efficiency.

The Role of Computer Vision in Barcode Detection

Computer vision is the backbone of barcode detection. It enables machines to interpret visual data, mimicking how humans perceive images. When applied to barcode reading, computer vision ensures precise detection and decoding, even in complex environments.

Recent case studies highlight its effectiveness:

Toyota improved production speed by 25% using AI-powered barcode scanners to read barcodes on intricate automotive parts.
Walmart enhanced scanning efficiency by over 25% at self-checkout stations, improving customer satisfaction.
Amazon reduced inventory scanning time by 30%, achieving better accuracy in warehouse management.
Pfizer addressed challenges with low-quality barcodes, ensuring compliance with pharmaceutical regulations.

Computer vision also supports advanced robotics in logistics. For example, it enables precise alignment of components and automates processes in distribution centers. This technology plays a pivotal role in modern supply chains, ensuring seamless operations.

Decoding Barcodes Using AI and Algorithms

AI and algorithms have revolutionized barcode capture technology. They enhance the decoding process by analyzing patterns, correcting errors, and interpreting data from damaged or smudged barcodes.

Performance statistics demonstrate the impact of AI on barcode reading:

Improvement Type	Performance Statistic
Increased Accuracy	Up to 30% higher accuracy than traditional scanners
Enhanced Readability	40% increase in barcode readability
Reduced Misreads	Significant reduction in misreads for worn or smudged barcodes
Sorting Accuracy	25% reduction in sorting errors
High-Density Barcode Accuracy	98% accuracy rate in reading high-density barcodes

AI-powered systems also adapt to various barcode formats, including 1D, 2D, and specialty barcodes. By leveraging machine vision technologies, these systems can handle high-speed environments and large-scale operations with ease.

Note: AI algorithms continuously learn and improve, ensuring your barcode reading system stays effective as new challenges arise.

Incorporating AI into barcode scanning not only boosts accuracy but also reduces the need for manual intervention. This allows workers to focus on higher-value tasks, enhancing overall productivity.

Applications of Barcode Reading Machine Vision Systems

Barcode reading machine vision systems have transformed industries by improving efficiency, accuracy, and traceability. These systems play a critical role in various sectors, including manufacturing, logistics, and healthcare.

Manufacturing and Quality Control

In manufacturing, barcode reading systems ensure seamless operations and high-quality standards. You can use these systems for automated product identification, inventory tracking, and barcode verification. They help detect defects, verify product labels, and maintain inventory accuracy.

Advanced technologies like smart vision accelerators and 3D laser line profile sensors enhance manufacturing processes. For example:

Technology Type	Key Features
Smart Vision Accelerators	Real-time processing, multi-camera coordination, high-speed image processing, integration with robotics.
3D Optical Character Recognition	Reads from curved surfaces, high accuracy, operates on various surface types, orientation flexibility.
3D Laser Line Profile Sensors	Reads codes on curved surfaces, detailed analysis, operates on challenging materials.
Factory Smart Sensors	Collects and analyzes data, adapts to conditions, provides real-time feedback.
Barcode Verification	Verifies code quality, checks parameters like contrast and decodability.

These technologies improve traceability and inventory accuracy, ensuring smooth production workflows. By adopting barcode scanning solutions, you can reduce errors and enhance operational efficiency.

Logistics and Supply Chain Optimization

In logistics, barcode reading systems streamline operations by automating inventory tracking and warehouse barcode reading. These systems improve traceability solutions, ensuring that products move efficiently through the supply chain.

For instance, you can use barcode scanning solutions to track shipments, verify package contents, and optimize warehouse operations. Warehouse barcode reading systems also enhance inventory accuracy by reducing manual errors. This ensures that the right products reach the right destinations on time.

Tip: Implementing barcode reading systems in your supply chain can significantly reduce delays and improve customer satisfaction.

Healthcare and Pharmaceutical Tracking

In healthcare, barcode reading systems enhance patient safety and operational efficiency. You can use these systems for inventory tracking, ensuring that medical supplies are always available. Barcode scanning solutions also improve traceability by tracking medications and laboratory samples.

Automate inventory tracking to ensure the right products are available when needed.
Improve patient safety by scanning barcodes on medications to prevent errors.
Enhance laboratory efficiency by accurately tracking samples from collection to testing.

These systems ensure inventory accuracy and traceability, reducing risks and improving healthcare outcomes. By adopting barcode reading machine vision systems, you can achieve higher standards of safety and efficiency in healthcare operations.

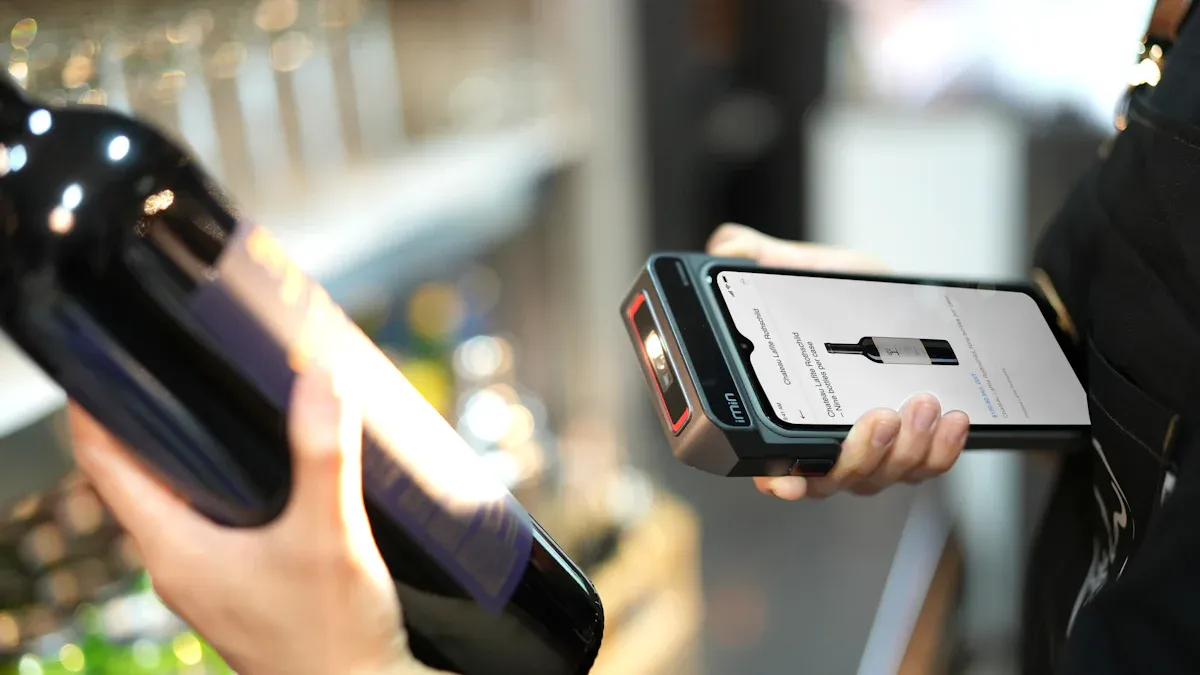

Retail and Inventory Management

Retail operations rely heavily on barcode reading systems to streamline processes and improve efficiency. You can use these systems to enhance inventory tracking, ensuring that products are always available when customers need them. By automating barcode scanning, you reduce manual errors and improve inventory accuracy across your store locations.

Modern machine vision systems help you manage inventory effectively. These systems scan barcodes on products, shelves, and packaging to provide real-time data. This data allows you to monitor stock levels, identify fast-moving items, and prevent overstocking or stockouts. For example, grocery stores use barcode scanners to track inventory and replenish shelves before items run out.

Self-checkout stations are another area where barcode reading systems shine. These systems allow customers to scan items quickly, reducing wait times and improving the shopping experience. You can also integrate barcode scanning with point-of-sale systems to update inventory records instantly after each transaction. This ensures inventory accuracy and helps you make informed decisions about restocking.

Retailers also benefit from using barcode reading systems for promotions and loyalty programs. Scanning barcodes on coupons or membership cards simplifies the process for both customers and staff. You can use this data to analyze customer preferences and tailor your marketing strategies.

Machine vision systems adapt to various retail environments, whether you operate a small boutique or a large supermarket. By implementing these systems, you improve inventory tracking, enhance inventory accuracy, and optimize your operations. This technology helps you stay competitive in a fast-paced retail landscape.

Benefits of Barcode Reading with Machine Vision Systems

Enhanced Speed and Throughput

Machine vision systems revolutionize barcode reading by significantly boosting speed and throughput. You can rely on these systems to automate inspection tasks, ensuring faster production and smoother workflows. For example:

High-speed cameras capture and decode barcodes in milliseconds, enabling rapid processing in manufacturing lines.
A high-volume distribution center can save up to $270,000 annually with just a 0.9% increase in read rates.
Image-based barcode readers reduce no-reads to below 1%, resulting in annual savings of $1 million.

These systems excel in environments where efficiency is critical. By automating barcode reading, you eliminate bottlenecks and improve overall productivity. Whether you're managing a warehouse or overseeing a production line, machine vision ensures your operations run seamlessly.

Tip: Upgrading to image-based barcode readers can drastically reduce errors and improve throughput, saving both time and money.

Superior Accuracy and Error Reduction

Machine vision systems enhance barcode reading accuracy, reducing errors that can disrupt workflows. These systems use advanced algorithms to ensure only correct parts are used, eliminating assembly mistakes. Real-time error detection prevents faulty products from advancing in production, saving you time and resources.

Benefit	Description
Improved Reliability	Successfully reads damaged codes and operates in challenging lighting conditions.
Increased Flexibility	Processes multiple code types and reads codes regardless of orientation.
Reduced Errors	Ensures correct parts are used, eliminating assembly errors.
Real-Time Error Detection	Detects defects early, preventing faulty products from proceeding further.
Cost Savings	Reduces manual inspection needs, lowering labor costs.
Increased Customer Satisfaction	Fewer defects and recalls improve customer satisfaction and minimize warranty claims.

Automated systems also adapt to various barcode formats, ensuring consistent performance across industries. Case studies show that integrating robotics with barcode technology improves accuracy and quality control processes. By adopting machine vision, you reduce human error and achieve higher standards of reliability.

Note: Early defect detection not only saves costs but also enhances customer satisfaction by delivering flawless products.

Scalability for High-Volume Operations

Machine vision systems scale effortlessly to meet the demands of high-volume operations. You can use these systems to automate routine tasks, increasing productivity while maintaining high product quality. For instance:

Automated barcode reading ensures consistent inspection and measurement, even in large-scale manufacturing.
Higher productivity reduces operational costs by minimizing the need for extensive safety measures.
These systems adapt to diverse environments, handling complex workflows without compromising performance.

Scalability is a key advantage of machine vision. Whether you're expanding your operations or managing seasonal demand spikes, these systems provide the flexibility you need. By automating barcode reading, you streamline processes and optimize resource allocation, ensuring your business remains competitive.

Tip: Investing in scalable machine vision systems prepares your operations for future growth and evolving industry demands.

Cost Savings and Long-Term Efficiency

Investing in machine vision barcode systems offers significant cost savings and operational efficiency over time. These systems reduce manual labor, optimize inventory management, and enhance productivity, making them a smart choice for businesses aiming to lower expenses and improve performance.

One of the most impactful benefits comes from automating repetitive tasks. Robots equipped with barcode technology handle these tasks without requiring a large workforce. This reduces labor costs while maintaining consistent performance. Unlike human workers, robots operate continuously without fatigue, maximizing throughput and minimizing operational expenses.

Did you know? Spreading the initial investment cost of a machine vision system over its lifecycle lowers the financial burden per year. This approach ensures long-term affordability while delivering consistent value.

Accurate inventory management is another area where these systems shine. By reducing errors in stock tracking, you avoid costly issues like stockouts or overstocking. Predictive technologies, such as AI and IoT integration, take this a step further. They analyze trends to forecast inventory needs, helping you maintain optimal stock levels and avoid unnecessary expenses.

Here are some key ways machine vision barcode systems save costs and improve efficiency:

Automating repetitive tasks reduces the need for manual labor.
Continuous operation of robots maximizes productivity and minimizes downtime.
Improved inventory accuracy prevents financial risks tied to stock mismanagement.
Advanced features like track-and-trace streamline operations, saving time and resources.
E-commerce fulfillment picking enhances order accuracy, reducing returns and associated costs.

The machine vision and industrial barcode scanning market continues to grow, driven by innovations that boost efficiency. Businesses adopting these systems benefit from cutting-edge features that streamline processes and reduce operational costs. By leveraging these technologies, you position your operations for long-term success while staying competitive in a rapidly evolving market.

Tip: Investing in AI-powered barcode systems not only saves money but also prepares your business for future challenges. These systems adapt to changing demands, ensuring you stay ahead of the curve.

Machine vision barcode systems offer more than just immediate savings. They provide a foundation for sustainable growth by improving efficiency, reducing errors, and optimizing resources. Over time, these benefits compound, delivering unmatched value for your business.

Challenges and Solutions in Barcode Reading

Overcoming Poor Barcode Quality

Poor barcode quality can disrupt workflows and lead to costly errors. Damaged, smudged, or poorly printed barcodes often become unreadable, causing delays in operations. Machine vision systems address this challenge by using advanced image processing algorithms. These algorithms enhance barcode clarity, even when labels are damaged or printed on reflective surfaces.

For example, in healthcare, barcodes on surgical instruments or patient wristbands must remain legible to ensure safety. Systems equipped with high-resolution cameras and AI can decode these barcodes accurately, reducing errors.

Challenge	Solution
Surgical Instrument Identification	Barcode technology simplifies the assembly of surgical tools, ensuring accuracy and reducing errors.
Patient Identification	Barcoded wristbands enhance patient safety by verifying identity and reducing treatment errors.
Specimen Collection	Barcodes ensure correct specimen collection, reducing labeling errors and improving accuracy.

Tip: Regularly inspect and maintain barcode printers to prevent quality issues before they occur.

Managing High-Speed Environments

High-speed environments demand rapid and accurate barcode reading. Machine vision systems excel in these scenarios by processing thousands of barcodes per hour. Vision-guided robots, for instance, can handle up to 10,000 parts per hour while maintaining classification accuracy.

Metric	Value
Reduction in quality assurance labor costs	Approximately 50%
Parts handled per hour by vision-guided robots	Up to 10,000 parts per hour
Increase in classification accuracy	20% over traditional algorithms
Improvement in robotic part-picking efficiency	Over 40%

In warehousing, these systems verify packaging and labels quickly to maintain compliance. In food production, they overcome challenges like glare from shrink-wrap, ensuring accurate label inspection without sacrificing speed.

Note: Upgrading to glare-resistant cameras can improve barcode readability in challenging environments.

Ensuring Seamless System Integration

Integrating barcode reading systems with existing infrastructure can be complex. However, successful integration ensures smooth operations and data flow. Companies like Siemens have combined IoT sensors with barcode scanning to monitor equipment conditions in real-time. This proactive approach reduces downtime and enhances efficiency.

Siemens: Integrated IoT sensors with barcode scanning to track equipment conditions in real-time, enabling proactive maintenance.
Tyson Foods: Used barcode scanning and IoT to enhance traceability and food safety, ensuring compliance with regulations.

By adopting scalable and flexible systems, you can achieve seamless integration, improving overall productivity and traceability.

Tip: Collaborate with system integrators to ensure compatibility between barcode readers and your existing technology.

Addressing Environmental Factors (e.g., lighting, reflections)

Environmental factors like lighting and reflections can significantly impact the performance of barcode reading machine vision systems. Poor lighting or excessive glare can obscure barcode details, leading to misreads or no-reads. Understanding these challenges and implementing effective solutions ensures reliable barcode detection in any environment.

Shiny or reflective surfaces often create glare or bright spots that obscure barcode details. For example, shrink-wrapped packages or glossy labels can reflect light directly into the camera, making it difficult to capture a clear image. You can address this by using specialized lighting techniques, such as:

Coaxial or dome lighting: These methods minimize reflections and provide even illumination across the barcode surface.
Diffuse lighting: This softens the light on reflective surfaces, reducing glare and enhancing visibility.
Dark field lighting: By reflecting light at a low angle, this technique highlights imperfections or edges on smooth surfaces.

Ambient light from external sources can also interfere with machine vision systems. Uneven illumination caused by sunlight or overhead lights may reduce the system's accuracy. Shielding or enclosures can block unwanted light, ensuring consistent lighting conditions.

Maintaining a high signal-to-noise ratio (SNR) is another critical factor. A higher SNR produces cleaner images, which improves the accuracy of barcode detection. This is especially important for 3D barcode reading, where precise data quality is essential.

Tip: Regularly test your lighting setup to ensure it meets the needs of your specific application. Adjusting the angle, intensity, or type of lighting can make a significant difference in performance.

By addressing these environmental factors, you can optimize your machine vision system for reliable barcode reading, even in challenging conditions.

Barcode reading machine vision systems have become essential in modern industries. They enhance efficiency, accuracy, and scalability, meeting your barcode reading needs with unmatched precision. By adopting this technology, you unlock transformative benefits like faster operations, reduced errors, and cost savings.

The future of barcode reading holds exciting possibilities. AI-driven inventory management, real-time tracking, and eco-friendly barcode designs are reshaping industries. For example:

Trend/Forecast	Description	Example
AI-driven inventory management	Predicts demand patterns and optimizes stock levels	E-commerce retailer adjusts inventory based on AI predictions
Real-time inventory tracking	Enhances response to demand fluctuations	Logistics company uses AI to identify shipment delays
Product authentication	Analyzes barcode patterns to prevent counterfeiting	Luxury brands verify authenticity using AI-based barcode checks
Personalized marketing	Links dynamic QR codes to tailored promotions	Coffee shop offers discounts via personalized QR codes
Eco-friendly barcode design	Reduces environmental impact and promotes sustainability	Food manufacturer prints eco-friendly barcodes with carbon footprint info

As computer vision evolves, it will continue to revolutionize barcode reading capabilities, ensuring your business stays ahead in a competitive landscape.

FAQ

What is the difference between 1D and 2D barcodes?

1D barcodes use vertical lines to store data, while 2D barcodes store information in both horizontal and vertical patterns. 2D barcodes hold more data, including text and URLs, making them ideal for industries needing detailed information.

Tip: Use 2D barcodes for applications requiring compact designs and higher data capacity.

How do machine vision systems handle damaged barcodes?

Machine vision systems use advanced algorithms to enhance damaged or smudged barcodes. High-resolution cameras and AI correct errors, ensuring accurate decoding even when barcodes are scratched or poorly printed.

Note: Regular maintenance of barcode printers can prevent damage and improve readability.

Can machine vision systems read multiple barcodes at once?

Yes, machine vision systems can scan multiple barcodes simultaneously. A larger field of view (FOV) and high-speed cameras allow these systems to process several barcodes in a single frame.

Did you know? This feature is especially useful in logistics and manufacturing for batch processing.

What industries benefit most from barcode reading systems?

Industries like manufacturing, logistics, healthcare, and retail benefit the most. These systems improve efficiency, accuracy, and traceability, making them essential for high-volume operations.

Example: In healthcare, barcode systems track medications and samples, ensuring patient safety.

How do lighting conditions affect barcode reading?

Poor lighting or glare can obscure barcode details, leading to errors. Machine vision systems use specialized lighting techniques like diffuse or coaxial lighting to minimize reflections and improve accuracy.

Tip: Test your lighting setup regularly to ensure optimal barcode readability.
